CF-120 Single Seat Stairlift
Stainless Steel and Worry Free
Introduction
Staircases are worrisome for families with senior parents or granparents, with falls being one of the top accident injuries for elderly. These families look to stairlifts as a practical, and immediate solution, but will insist on safety, comfort and security first.
The CF-120 Stairlift is our most popular product, a single-seat stairlift. The lift is made of sturdy 304 Stainless Steel, which is the most durable material for this application, able to withstand the daily grinding from load stress.
Main Features
- Stainless Steel – non-corrosive, high load-bearing capacities
- Can turn tight corners in space-restricted stairwells
- Anti-collision safety bars
- Surround-me armrests – secure and safe
- Folds up into compact width too free up space
- Inuitive, accessible start/stop buttons
- Remote Control
- 2 year warranty and liability insurance
Specifications |
|
|---|---|
| Load Capacity | 100kg |
| Seat Dimensions | 59cm x 50cm x 90cm (LWH) |
| Staircase Width | 69 cm (or custom made) |
| Electrical Requirements | 110V 60Hz Wall Socket |
| Motor | 24V DC 500W DC motor |
| Toothed Rack | 3.0 cm (diameter) |
| Rails | 304 Stainless Steel |
| Roller wheels | SUS420J2 Stainless Steel |
| Chair Assembly | 304 Stainless Steel |
| Manufactured | Made in Taiwan |
Confidence in Stainless Steel.
Our most important safety feature is Solid 304 Stainless Steel. This is especially important because the roller and rail system experiences the most grinding from heavy loads – Solid Steel resists corrosion and structural fatigue better than other materials (aluminum and iron), resulting in safe and confident stairlift rides every time.
Stainless steel also allows us to build versatility into our products without compromising safety or performance.
- Non-Corrosive
- No pitting
- Resists metal fatigue
- No vibrations
- Compact designs
- Complete security and confidence
Learn more about stairlift metals here.
Security and confidence in Solid Stainless steel construction.
CF-120 Stairlift Safety Comes First
Keeping parents and grandparents safe is a major focus for families. Our safety features are infused throughout the CF-120 stairlift with 15 years of constant improvements, certified by National Certification Regulatory organizations.
- Solid Stainless Steel – Most durable stairlift material
- Collision Bars
- Roller System Covers
- Surround-Me safety armrests
- Easily accessible Analog Start/Stop buttons
- Emergency Stop Button
Surround-me armrests are more intuitive and less cumbersome than buckling seat belts.
Big-red emergency stop button.
Safety collision-bars halt the chair if it collides with an object.
Easy-to-access stop/start button.
Solving Difficult Stairwells
Space Efficient Design
Space in stairwells is often a challenging aspect in older buildings, Bulky stairlift design can easily exceeds the width of these stairwells.
Stainless steel materials allow us to design with short chair-to-wall distances, without compromising safety or performance.
This has been especially useful in restricted stairwells in older buildings. But it’s also an advantage in any installations, as it allows for extra stair space for concurrent foot traffic.
CF-120 compact rail system advantages in restricted-space stairwells.
CF-120 compact rail design advantages in restricted-space stairwells.
Solid stainless steel railing also allow tight corners without compromising safety
Cargo Lift
The CF-120 stairlift often doubles as a cargo lift that anyone can use. It has a wider floor platform to accommodate boxes and luggage. The seat can be lifted up for more vertical space. The platform has angled side wings that keep cargo centered on the platform.
A remote control can start and stop the the lift.
CF-120 as a cargo lift helps with the daily grocerices.
The seat lifts up accomodating more vertical space for cargo.

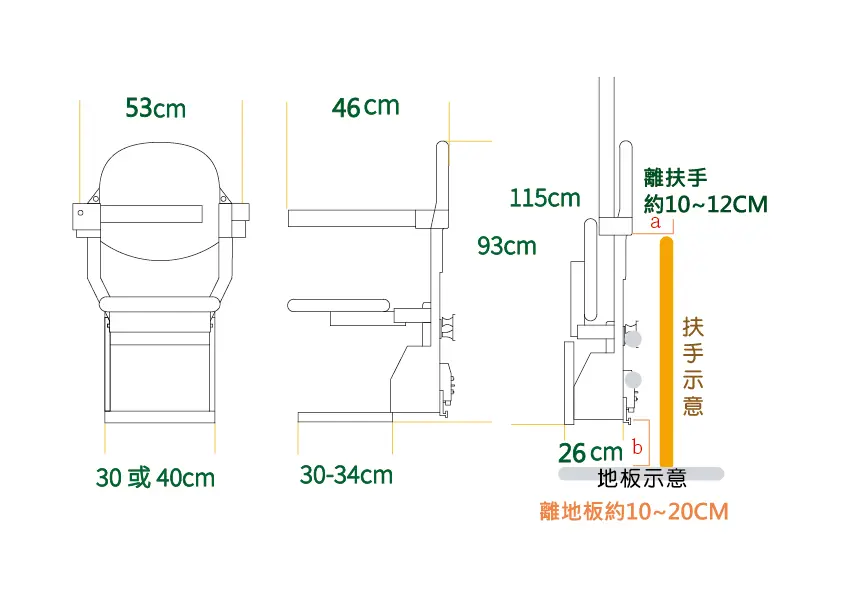

CF-120 Dimensions
a – Chair to Stair Handrail (10-12 cm)
b – Chair to Floor (10-20cm)
Dimensions |
|
|---|---|
| Height (Arm rests down) | 93 cm |
| Height (Arm rests up) | 115 cm |
| Width Chair | 53 cm |
| Width Base | 32 cm |
| Depth base | 33 cm |
| Chair Depth (folded) | 26 cm |
| Chair to Handrail | 10-12 cm |
| Chair to Floor | 10-20 cm |
Conclusion
Families insist on a stairlift that focuses on safety so they don’t have to ever worry. The CF-120 stairlift never compromises on safety by using the most sturdy material for these applications, and that’s 304 Stainless Steel.
The CF-120 also doubles as a cargo lift with wider foot platorm and flip up seat.
Compact design, allows for installation in restrictive spaces and tight corner.
The CF-120 is the “just-right” product for our customers looking for a perfect fit of safety, performance and reliability.
Does the CF-150 suit your needs？Contact us below or see some CF-150 installation examples.
